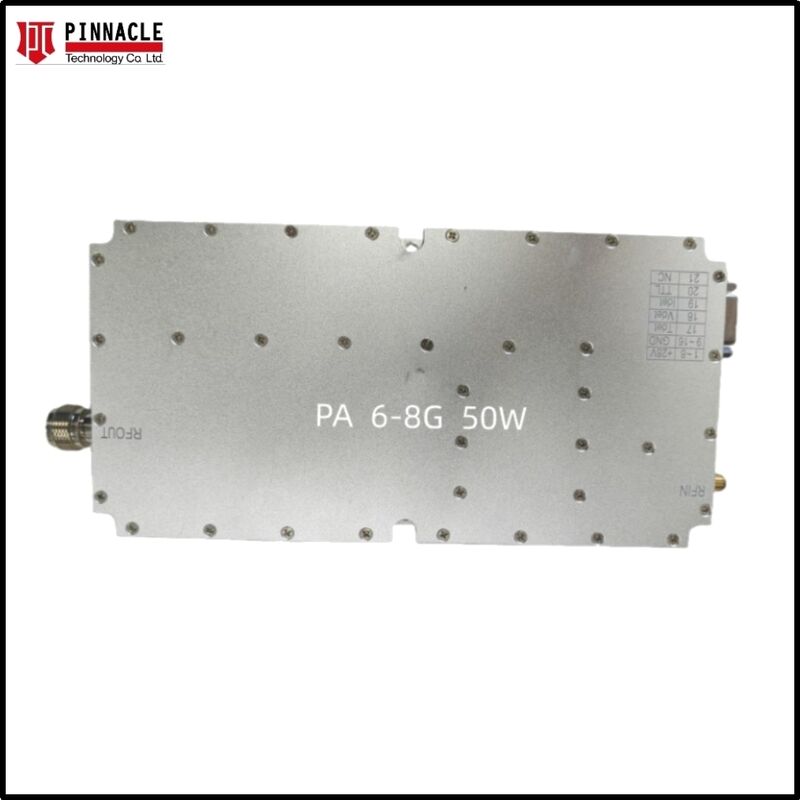

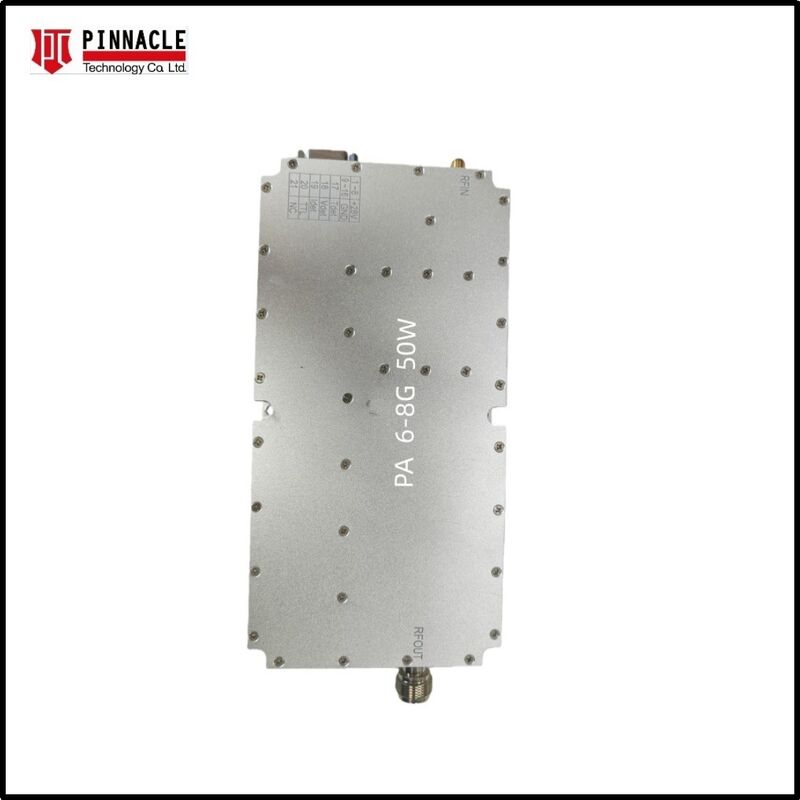

Name: High-Power WiFi 6E 5925 - 7125MHz RF Jammer Amplifier Module with 50W 100W output
Brand: Pinnacle Technology Co., Limited
SKU: PTC-A6E
Price: 22,238.00 USD
Availability: InStock

Maison > produits > module d'amplificateur de puissance de rf >

High-Power WiFi 6E 5925 - 7125MHz RF Jammer Amplifier Module with 50W 100W output

WiFi 6E RF jammer amplifier

50W high-power RF amplifier module

100W WiFi 6E amplifier with warranty

Lieu d'origine:

SHENZHEN CHINE

Nom de marque:

PTC

Certification:

CE,QS

Numéro de modèle:

PTC-A6E

Contactez-nous

Demande A Cité

Détails du produit

Mettre en évidence:

WiFi 6E RF jammer amplifier

50W high-power RF amplifier module

100W WiFi 6E amplifier with warranty

Conditions de paiement et d'expédition

Quantité de commande min

1 pièces

Prix

Neg

Détails d'emballage

Emballage standard

Délai de livraison

5-30 jours

Conditions de paiement

T/T, Western Union, L/C, D/A, D/P

Capacité d'approvisionnement

50000/mois

Produits connexes

Vidéo

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

Obtenez le meilleur prix

Vidéo

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

Obtenez le meilleur prix

Vidéo

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

Obtenez le meilleur prix

Amplificateur à haute puissance 2,4G à l'état solide 200W

Obtenez le meilleur prix

Contactez-nous

Contact maintenant

Description du produit

High-Power WiFi 6E 5925-7125MHz RF Jammer Amplifier Module

As wireless technology advances, the WiFi 6E (6GHz band) introduces new security considerations. Our industrial-grade RF Jammer Module delivers comprehensive signal suppression across the complete WiFi 6E spectrum (5925-7125 MHz). Utilizing high-efficiency GaN technology in a compact design, this module serves as the core component for advanced signal management systems, prison security applications, and sensitive area protection. The 50W 6E WiFi RF amplifier module operates without a signal source, offering lightweight construction for easy mounting and transport.

Technical Specifications

Parameter	Specifications (Standard)	Specifications (High Power)
Model	A6E-50W	A6E-100W
Frequency Range	5925 - 7125 MHz (Full WiFi 6E Coverage)	5925 - 7125 MHz
Output Power	50W (47 ± 1 dBm)	100W (50 ± 1 dBm)
Modulation Source	Digital Gaussian Noise / Analog Sweep	Digital Gaussian Noise / Analog Sweep
Input Voltage	DC +28V / +48V Optional	DC +28V / +48V Optional
Operating Current	< 6A (at 28V)	< 12A (at 28V)
RF Interface	N-Female (Output) / SMA (Input)	N-Female (Output) / SMA (Input)
Control Interface	DB9 / DB15 (Customizable)	DB9 / DB15 (Customizable)
Cooling System	Integrated Heat Sink (Fan cooling required)	Advanced Forced Air Cooling
VSWR Protection	Built-in Auto-Shutdown Protection	Built-in Auto-Shutdown Protection

Key Features

Advanced Frequency Coverage: Targets the complete WiFi 6E 6GHz band to eliminate security gaps
Power Output Options: Select between 50W for standard range or 100W for extended-distance suppression
Exceptional Stability: Maintains consistent output performance across extreme temperatures (-20°C to +65°C)
Intelligent Protection: Integrated over-temperature and high-VSWR protection systems prevent hardware damage
Customization Available: OEM/ODM services for tailored frequency ranges, gain adjustments, and housing designs

Applications

Counter-UAV Systems: Effective against drones utilizing 6GHz control and video downlink frequencies
Sensitive Facility Security: Protection for prisons, military installations, and government buildings
Privacy Protection: Prevention of unauthorized WiFi 6E data transmission in corporate environments

Keywords: WiFi 6E Jammer, 6GHz RF Module, 100W Signal Suppressor, 50W RF Power Amplifier, WiFi 6E Security, High Power Jammer Source
